Bulkhead Union (Half and Full Thread)

Name: PM Bulkhead Union (Half and Full Thread)
Brand: CR Pneumatic
SKU: PM

PM

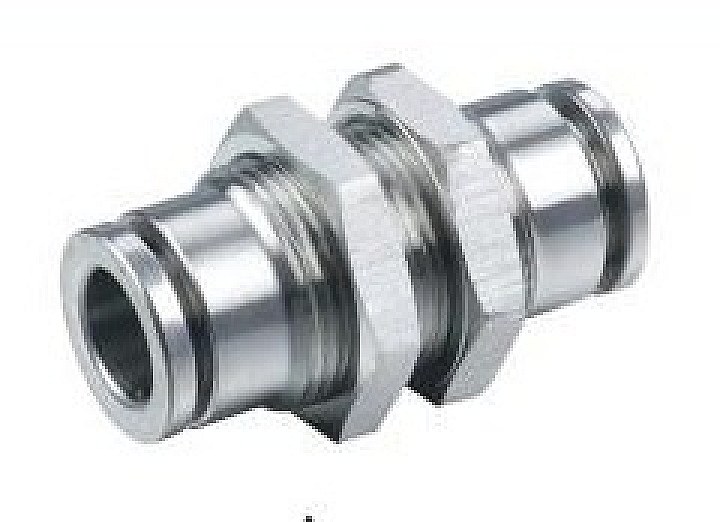

Stainless steel push-in fitting for panel mounting.

This bulkhead union is a stainless steel push-in fitting designed to pass a tube through a panel or bulkhead. It is available in half and full thread versions, with tube sizes from 4-4 to 16-16 mm and panel threads from M12x1 to M24x1. It is typically purchased by importers, distributors, and contractors for pneumatic and fluid systems.

Key features

Stainless steel construction for corrosion resistance
Push-in connection for quick tube installation
Available in half and full thread versions
Tube sizes from 4-4 to 16-16 mm
Panel threads from M12x1 to M24x1

Applications

Pneumatic control panelsInstrumentation and measurement systemsFluid handling equipmentMachine frames and enclosuresProcess automation

Request a Quote

Ordering terms

PM

The numbers buyers ask for first. Tell us your quantity and destination and we will confirm in writing.

Minimum order: 100 pcs per model, mixed models accepted
Lead time: 15–25 days after deposit; stock items 3–5 days
Packaging: PE bag + inner box + export carton; neutral packing on request
OEM / ODM: OEM logo, custom thread and tube size, private label packaging
Payment: T/T 30% deposit, balance against copy B/L; L/C at sight over USD 30,000
Incoterms: EXW Ningbo by default; FOB / CIF / DAP quoted on request
Samples: Samples free, freight collect; sample cost refunded on the first order

Specifications

PM

General
Material	Stainless steel 304 as standard; 316 available on request

The bulkhead union is constructed with a stainless steel body and a push-in mechanism that secures the tube without tools. The half thread version has a shorter threaded section, while the full thread version provides a longer thread for thicker panels. Both versions are used to route tubing through enclosures, cabinets, or machine frames, maintaining a seal and strain relief. Installation involves inserting the fitting through a panel hole and securing it with a locknut (not included unless specified). The push-in connection allows for quick assembly and disassembly of tubing. Typical applications include pneumatic control panels, instrumentation, and fluid handling systems. When requesting a quote, specify: tube size (e.g., 4-4 mm), panel thread (e.g., M12x1), thread type (half or full), material (stainless steel), quantity, and packaging requirements. Additional parameters such as operating pressure and temperature are not provided here; please state your requirements for confirmation.
